Hydraulic units

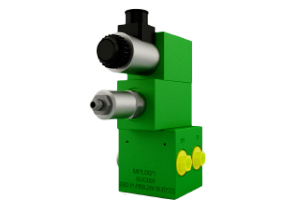

BUG001 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 25
Nominal flow, l/min 20
Maximum pressure, MPа 24
Nominal pressure, MPа 16
Number of sections, pcs 1
Voltage, V 24
Input connector  DIN 46350 ISO 4400

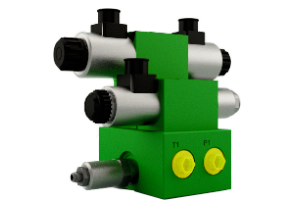

BUG002 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа  24
Nominal pressure, MPа 17
Number of sections, pcs 2
Voltage, V  24
Input connector            DIN 46350 ISO 4400

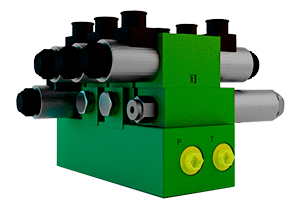

BUG004 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа 24
Nominal pressure, MPа 16
Number of sections, pcs 4
Voltage, V 24
Input connector            DIN 46350 ISO 4400

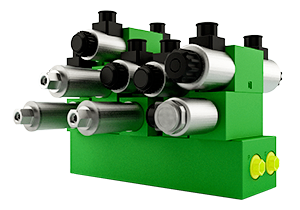

BUG006 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа  25
Nominal pressure, MPа 16
Number of sections, pcs 5
Voltage, V  24
Input connector            DIN 46350 ISO 4400

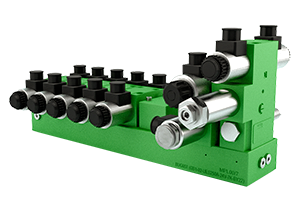

BUG007 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 45
Nominal flow, l/min 40
Maximum pressure, MPа 20
Nominal pressure, MPа 16
Number of sections, pcs 7
Voltage, V  24
Input connector  DIN 46350 ISO 4400

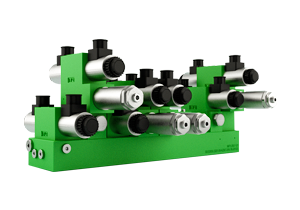

BUG008 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа 22
Nominal pressure, MPа            16
Number of sections, pcs 7
Voltage, V 24
Input connector DIN 46350 ISO 4400

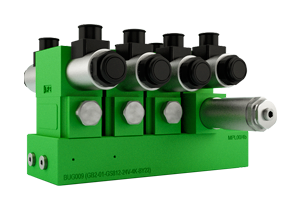

BUG009 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 25
Nominal flow, l/min 20
Maximum pressure, MPа 22
Nominal pressure, MPа 16
Number of sections, pcs 4
Voltage, V 24
Input connector DIN 46350 ISO 4400

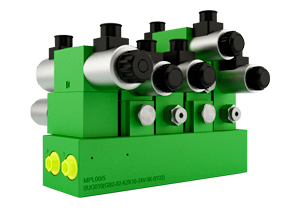

BUG010 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа 25
Nominal pressure, MPа            16
Number of sections, pcs 5
Voltage, V 24
Input connector            DIN 46350 ISO 4400

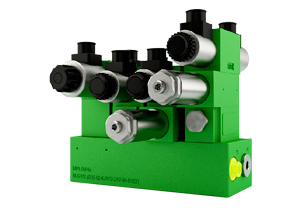

BUG011 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 55
Nominal flow, l/min 50
Maximum pressure, MPа 25
Nominal pressure, MPа            16
Number of sections, pcs 4
Voltage, V 24
Input connector DIN 46350 ISO 4400

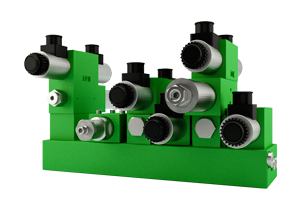

BUG012 hydraulic unit

Modular and screw-in hydraulic equipment. Connection of hydraulic equipment is carried out according to ISO 4401. Control type – electric.

Maximum flow, l/min 40
Nominal flow, l/min 13
Maximum pressure, MPа 21
Nominal pressure, MPа 12,5
Number of sections, pcs 5
Voltage, V 24
Input connector            DIN 46350 ISO 4400

BFM001 hydraulic unit

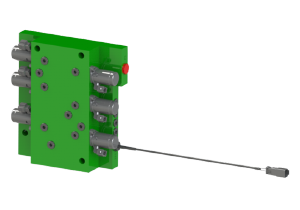

Hydraulic unit for controlling friction clutch couplings of GMP120 machinery of "AMKODOR".

Valve type cartridge
Number of valves 6
Nominal flow, l/min 30
Controlling pressure range, MPа 0 … 0,2
Control  electric, proportional
Power voltage, В 24 / AMP Junior Timer
Class of safety protection IP65
BFM001 hydraulic unit

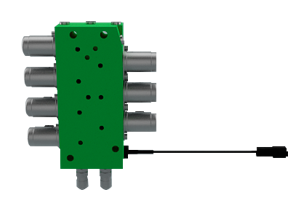

BFM002 hydraulic unit

Hydraulic unit for controlling friction clutch couplings of GMP90 machinery of "AMKODOR".

Valve type cartridge
Number of valves 7
Nominal flow, l/min 30
Controlling pressure range, MPа 0 … 0,2
Control  electric, proportional
Power voltage, В 24 / AMP Junior Timer
Class of safety protection IP65

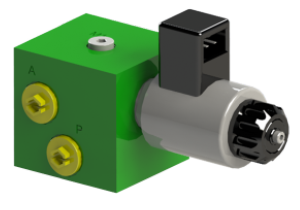

BPV001 hydraulic unit

Hydraulic unit for controlling front PTO shaft of MTZ tractors.

Nominal inlet pressure, MPа  5
Nominal outlet pressure, MPа 20
Nominal flow, l/min up to 40

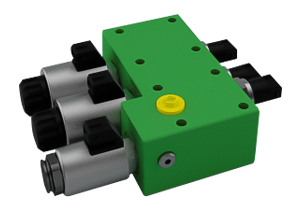

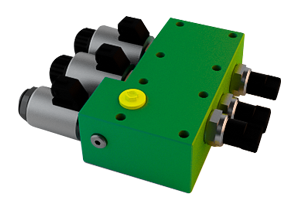

BZV001 hydraulic unit

Hydraulic unit for controlling rear PTO shaft of MTZ tractors.

Nominal control voltage, V 12
Ingress protection IP67
Maximum flow, l/min 40
Learn more about our solutions
Each customer we offer a customized solution to be developed at a separate meeting.
