Clutch and brake control hydroelectric complexes

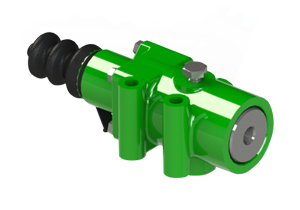

Hydraulic amplifier

Hydraulic amplifier.

Pressure, MPа 1,8
Piston diameter, mm 50
Piston travel, mm 36
Nominal pushing force, kH 2,3...2,5

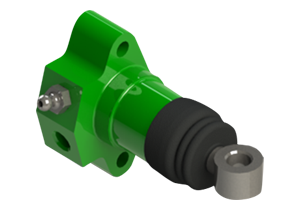

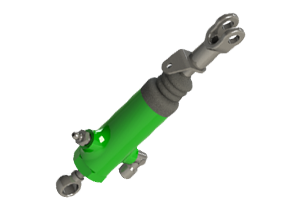

Working cylinders

Working cylinders.

Pressure, MPа 2...3
Piston diameter, mm 25,4...28
Piston travel, mm  15...30
Type     single-piston

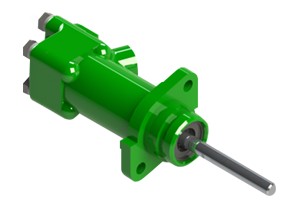

Main hydraulic cylinder

Main hydraulic cylinder.

Pressure, MPа 2...3
Piston diameter, mm 28
Piston travel, mm 15...30
Type single-piston
Learn more about our solutions
Each customer we offer a customized solution to be developed at a separate meeting.
